HM-ZD2418 Automatic Rigid box line
HM-ZD2418 Automatic Rigid box line Display pictures2 Display pictures3 Display pictures4 Display pictures5
  • Commodity name:

    HM-ZD2418 Automatic Rigid box line
  • Shelf time:

    2017-06-06 14:31:22
  • Browse times:

    1次
  • Hongming machinery mainly produce Automatic rigid box machine, rigid box maker, rigid box line, glueing machine, box wrapping machine, box maker, ect. These machines are widely used to making rigid box, fancy box, custom box, cell phone boxes, chocolate boxes, etc.
  • Details of the product
  • Introduction of commodity video

      HM-ZD2418 Automatic Rigid Box Line is specialized in mass producing all kinds of small rigid boxes, such as finest jewelry boxes, ornaments boxes, gift boxes, watch boxes, pencil boxes, candy boxes, souvenir boxes, and cosmetic boxes, etc. The minimum size for wrapped box is 45x35x10mm, which covers the ring boxes. It is the smallest automatic box maker in China.

      This machine adopts PLC and man-machine control, error auto stop and display, camera tracing system, and can automatically feed coverpaper, feed greyboard, paste four corners, spot greyboard, lift box, wrap box, fold corner edges and form box.

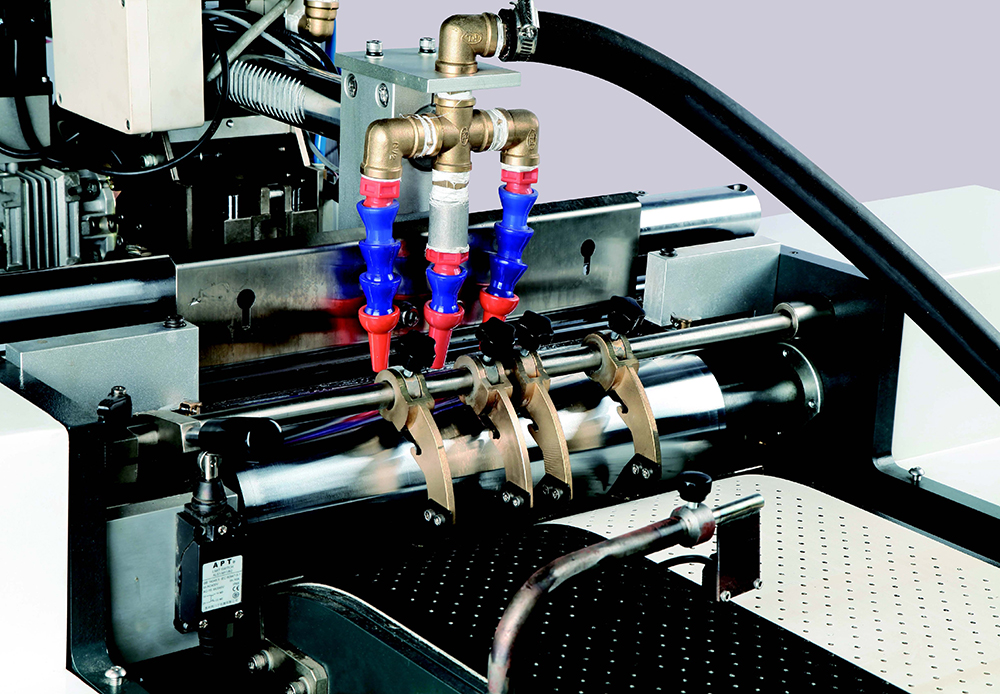

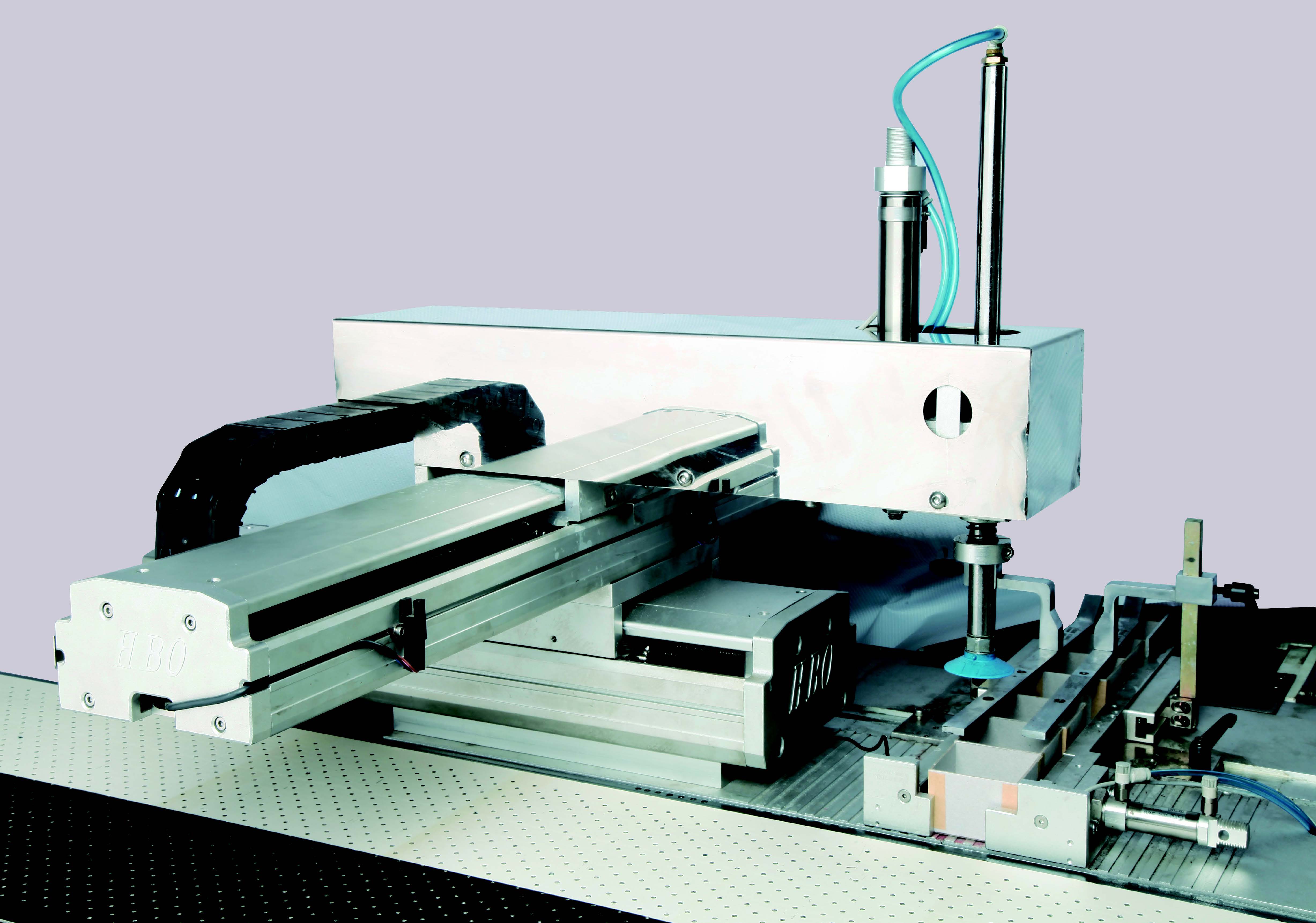

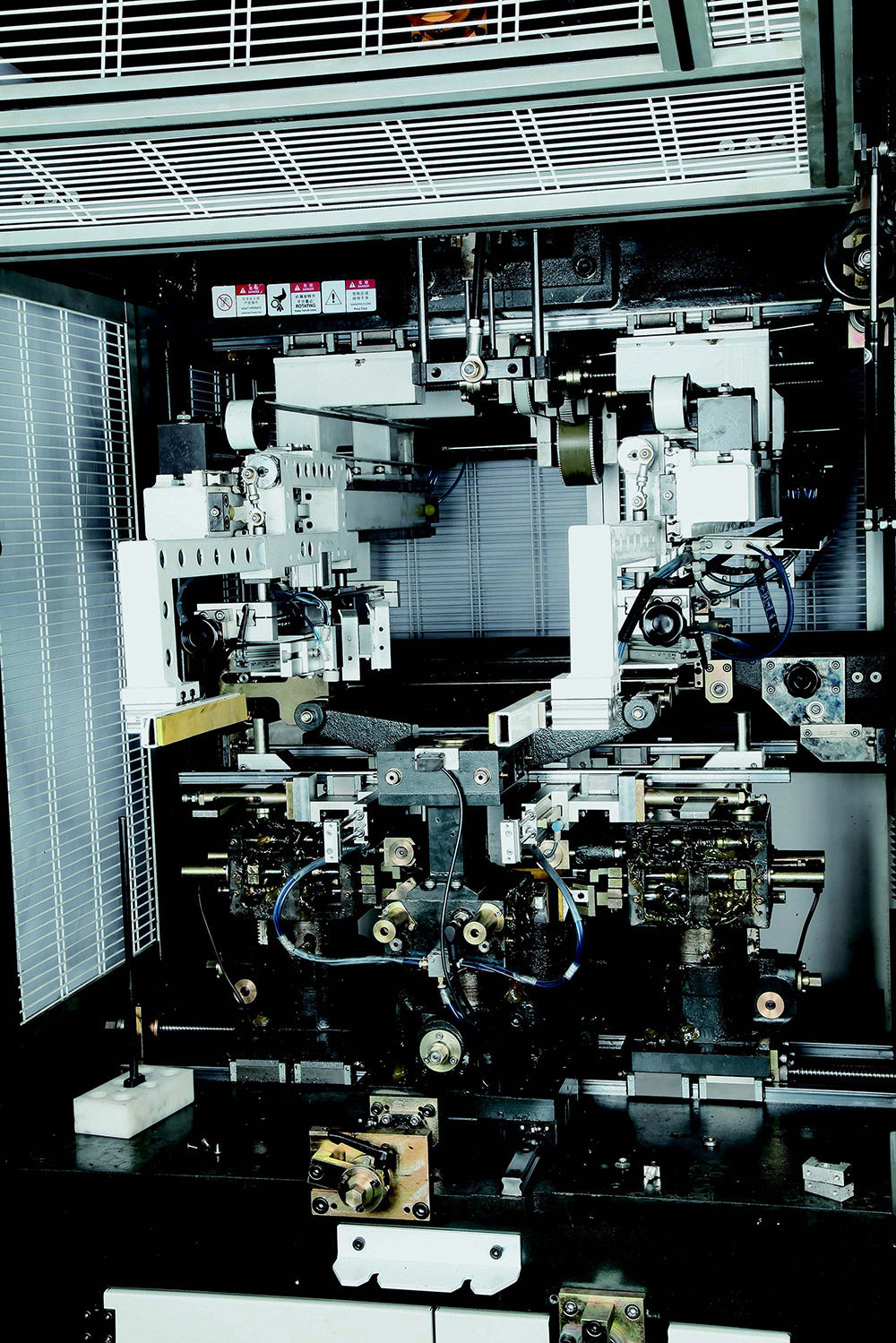

     The feeder, gluer and conveyor are driven by servo system which has continuously variable transmission and enjoys high accuracy, easy adjusting, and less time consumption. Double color conveyor can save the time for changing to other color belt, which is Hongming’s patent. The spot unit adopts Germany camera with 5 million pixel and robot arm to pick and spot the greyboard, enhancing the spotting accuracy to ±0.05mm. The forming unit employs Germany linear slider, stable and wear resistant.



Features and function



1. Suit to all kinds of rigid boxes in mass production;

2. Computer control with error auto stop and display;

3. Adopt servo and PLC;

4. Automatically change mould(optional);

5. Automatically feed paper and greyboard;

6. 24-hours control for glue pre-heating;

7. Input 300 product formula, and add 2G memory SD card(optional);

8. Automatically cut and heat tape to paste the greyboard box’s quad stayer (four corners), with independent man-machine control;

9. Spotter by camera tracing system and robot arm(spotting inaccuracy ±0.05mm);

10. Wrapper can automatically and continually deliver box, wrap paper, fold corner edge, fold in and form box;

11. Automatic control system for glue viscosity(optional).

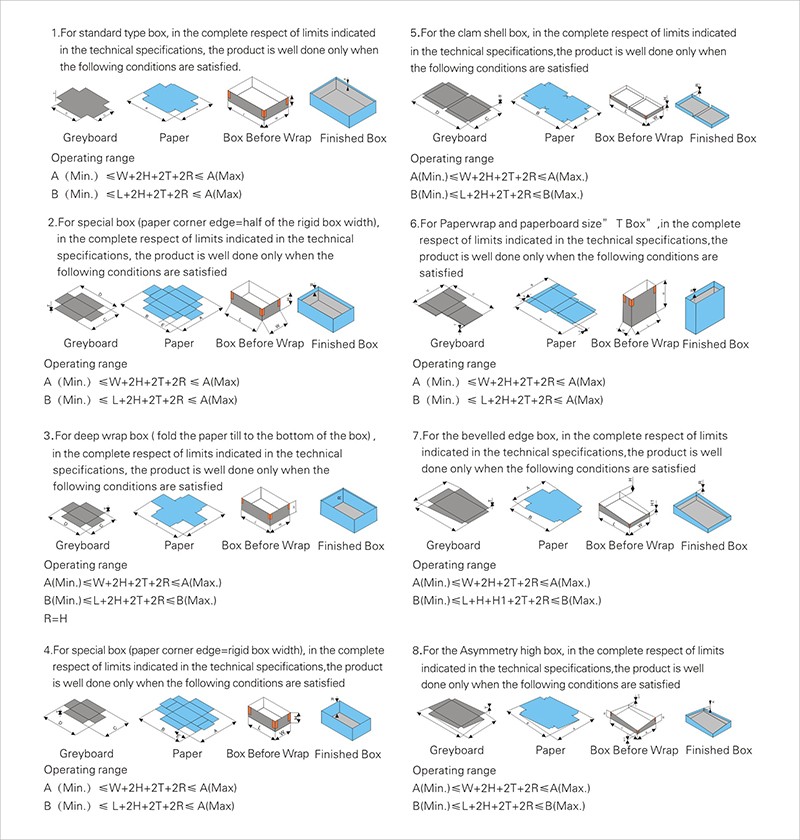

Technical parameters





型号Model

HM-ZD2418

灰板尺寸 Greyboard Size

(D=Length,C=Width)



最长尺寸D(Max.) 400mm
最短尺寸D(Min.) 65mm
最宽尺寸C(Max.) 320mm
最窄尺寸C(Min) 55mm

面纸尺寸Paper Sheet Size

(B=Length, A=Width)

最长尺寸B ( Max.)

450mm

最短尺寸B ( Min.)

110mm

最宽尺寸A ( Max.)

305mm

最窄尺寸A ( Min.)

45mm

盒子尺寸

Finished Box Size

L=Length W=Width

H=Height T=Thickness

最长尺寸L ( Max.)

240mm

最短尺寸L ( Min.)

45mm

最宽尺寸W ( Max.)

160mm

最窄尺寸W ( Min.)

35mm

最高尺寸H ( Max.)

80mm

最低尺寸H ( Min.)

10mm

灰板厚度

Greyboard thickness (T)

最厚尺寸T ( Max.)

3mm

最薄尺寸T ( Min.)

0.5mm

面纸厚度Thickness of Paper

Thickness Range

80-160gsm

折入深度Folding-in Depth ( R )

R

8-80mm

折耳尺寸Paper Corner Edge (E)

E

10-100mm

生产速度Speed

30-40pcs/min

电压Voltage

AC380V

功率Power

20kW

机器净重Net Weight

4000kg

机器尺寸Machine Dimension

4500mmx4000mmx3000mm
